2C23T Handheld Digital Dual Channel Oscilloscope Multimeter 3in1 SignalGenerator

<p><strong>Features:</strong><br>*Dual-channel 2X10MHz bandwidth, isolated channels are independents of each other to avoid interference between each other, and signal detection is more accurate<br>*Excellent oscilloscope performance: The hardware architecture adopts the same AR M + FPGA + high-speed ADC solution as that of desktop computers. It has high cost and is an unusual CPU direct acquisition solution. It has a powerful trigger and has super waveform capture capabilities without losing waveform details.<br>*-button measurement, adjustment at will: with complete trigger modes: automatic, single, regular; equipped with efficient -button automatic adjustment, which can display the measured signal waveform without cumbersome adjustment.<br>*Waveform saving and viewing: Save waveform screenshots with click. The saved pictures can be viewed on an oscilloscope or exported to a computer to facilitate secondary analysis of the collected signals.<br>*Free switching between 5 languages: English, Russian, Portuguese, Japanese, German<br>*Intelligent anti-burning, overload will not burn the meter: Intelligent anti-burning electricity measurement is safer, and novices can easily measure; intelligent anti-burning has overload for protection, and built-in double ceramic fuses prevent meter burning and are safer<br>*Signal generator function introduction: Output waveform: sine wave, square wave, triangle wave, full wave, half wave, noise wave, DC; output frequency: 1Hz-2MHz; output amplitude: 0.1-3.3V<br>*Strong battery life + high-efficiency work: 3000mah large-capacity lithium battery, rechargeable and worry-free, 8 hours of long battery life, with you to work all day long<br>*Take it wherever you want: 3.8cm ultra-thin body, compact and does not take up space, device is enough when you go out<br><br><strong>Specification:</strong><br>Screen: 2.8-inch true color screen<br>Resolution: 320*240<br>Charging: TYPE-C (5V/1A)<br>Battery: 3000mAh lithium battery<br>Supported functions: oscilloscope, signal generator, digital multimeter (see functional parameters for details)<br>Standby time: 8 hours (laboratory theoretical maximum)<br>Language: 5 language switching (English, Russian, Portuguese, Japanese, German)<br>Product size: 167x89x35mm<br>Weight: 300g<br><br>OSCILLOSCOPE PARAMETERS<br>Channel: Dual channel<br>Sample rate：50M<br>Analog bandwidth: 10M (dual channel 10M)<br>Storage depth：32kb<br>Impedance: 1ΜΩ<br>Time Base Range: 50ns-10s<br>Vertical sensitivity: 20mV/div-10V/div<br>Maximum measured voltage:±400V<br>Trigger mode: AUTO/Normal/Single<br>Trigger type: Rising edge, Falling edge<br>Display mode: YT/Scroll/XY<br>Coupling ：AC/DC<br>Save waveform screenshot: Yes<br>Computer viewing waveform: Yes<br><br>SIGNAL GENERATOR-PARAMETERS<br>Channel：Single channel<br>Frequency: 1Hz-2MHz<br>Amplitude: 0.1-3.3V<br><br>MULTIMETER PARAMETERS<br>DC Voltage: 9.999V/99.99V/999.9V<br>AC voltage: 9.999V/99.99V/750.0V<br>DC current: 9999uA/99.99mA/999.9mA/9.999A<br>AC current: 9999uA/99.99mA/999.9mA/9.999A<br>Temperature: 9.999ΜΩ/999.9ΚΩ/99.99ΚΩ/9.999ΚΩ/999.9Ω; 99.99ΜΩ<br>Diode: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF; 9.999mF/99.99mF<br>Resistance: (-55~1300°℃)/(-67-2372°F)<br>Capacity：√<br>Continuity test：√<br>Live line detection：√<br><br><strong>Packing list:</strong><br>#Standard:<br>1*2C23T Dual Channel Oscilloscope Multimeter<br>1*10X probe<br>1* Crocodile clip probe<br>1*Multimeter Probe<br>1*Charging cable<br>1*Packaging box<br>1*Instructions<br><br>#Optional:<br>1*2C23T Dual Channel Oscilloscope Multimeter<br>2*10X probe<br>1* Crocodile clip probe<br>1*Multimeter Probe<br>1*Charging cable<br>1*Packaging box<br>1*Instructions</p><p><br></p><p><br></p><p>Note:<br>1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.<br>2. Please allow slight manual measurement deviation for the data.</p>

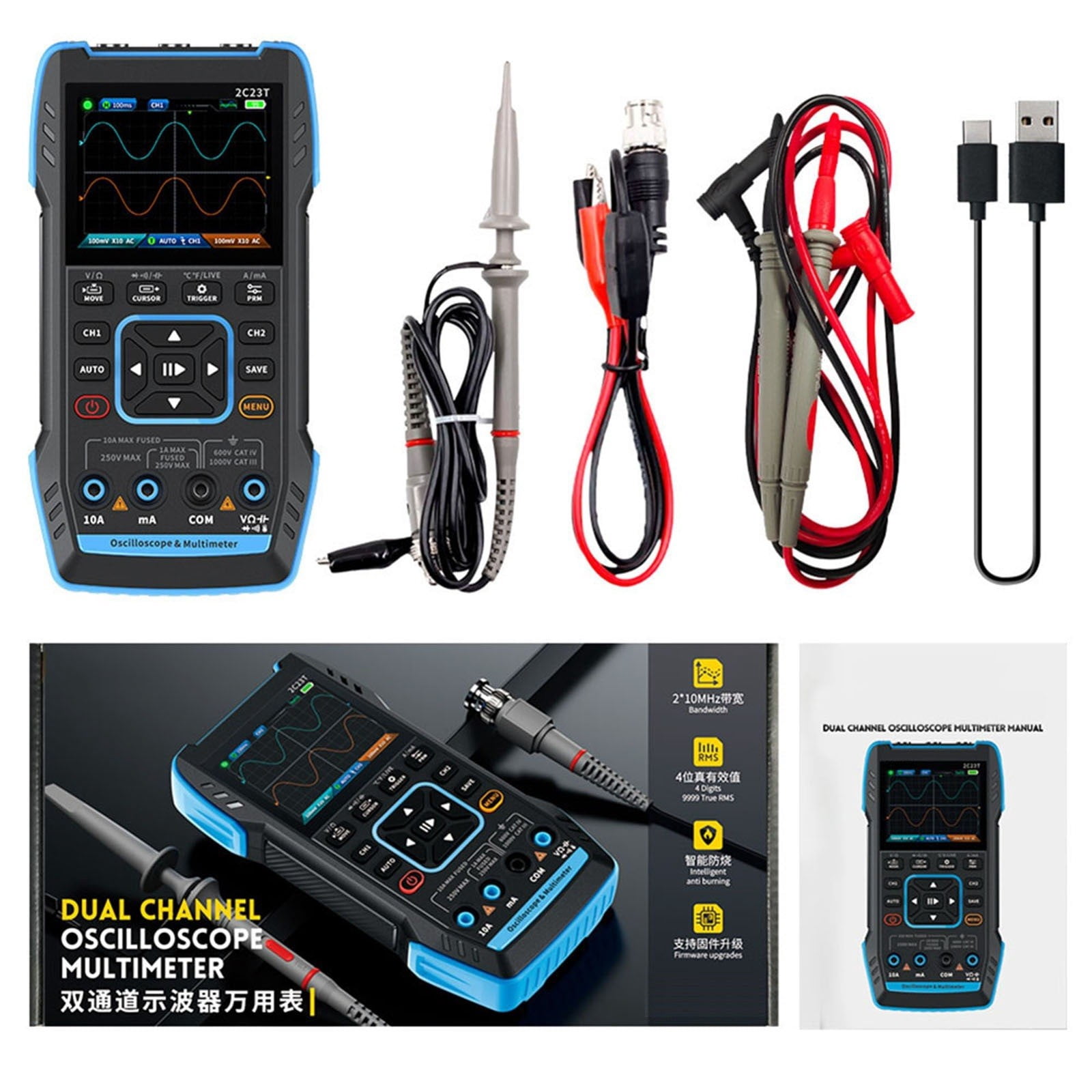

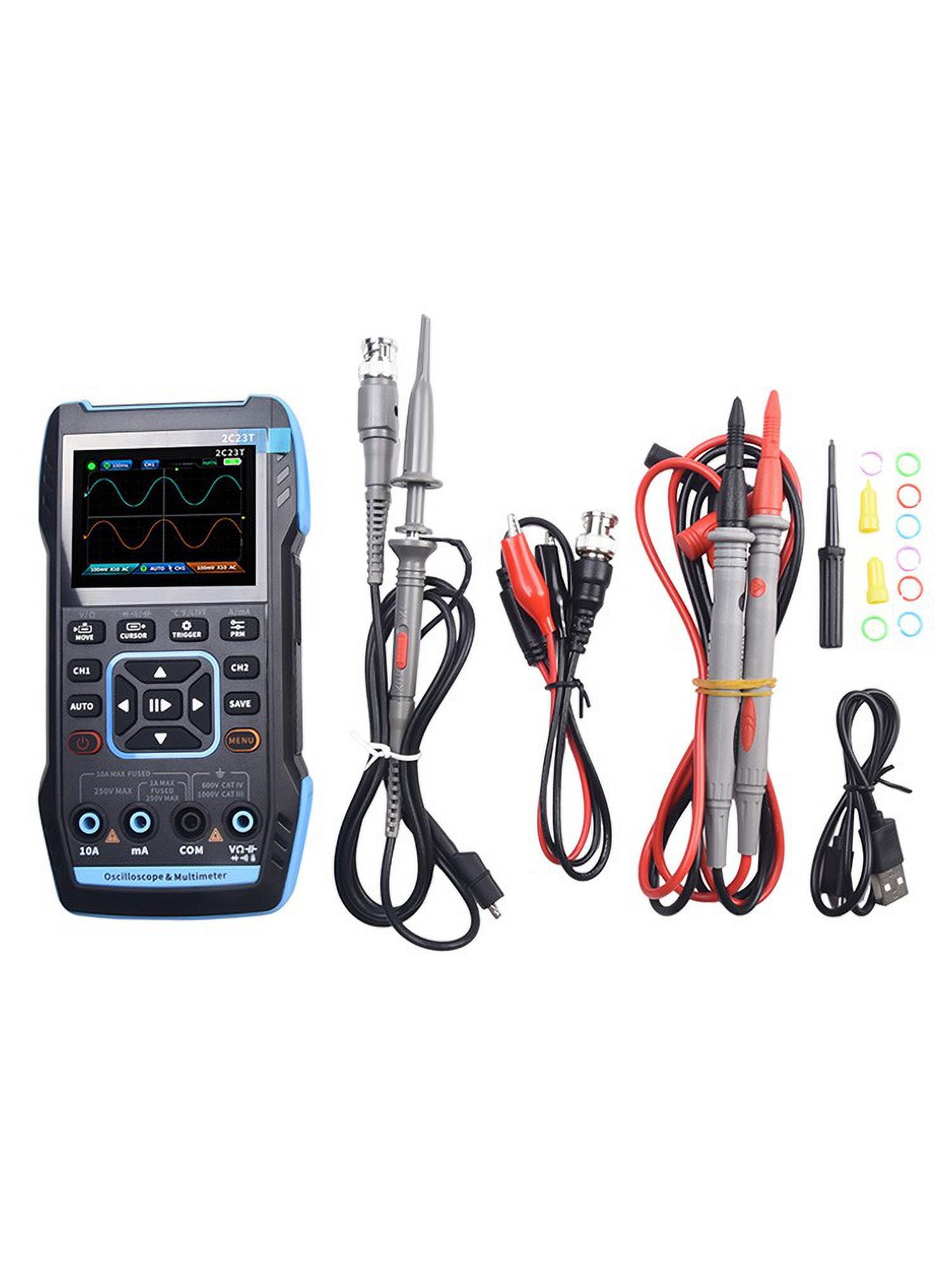

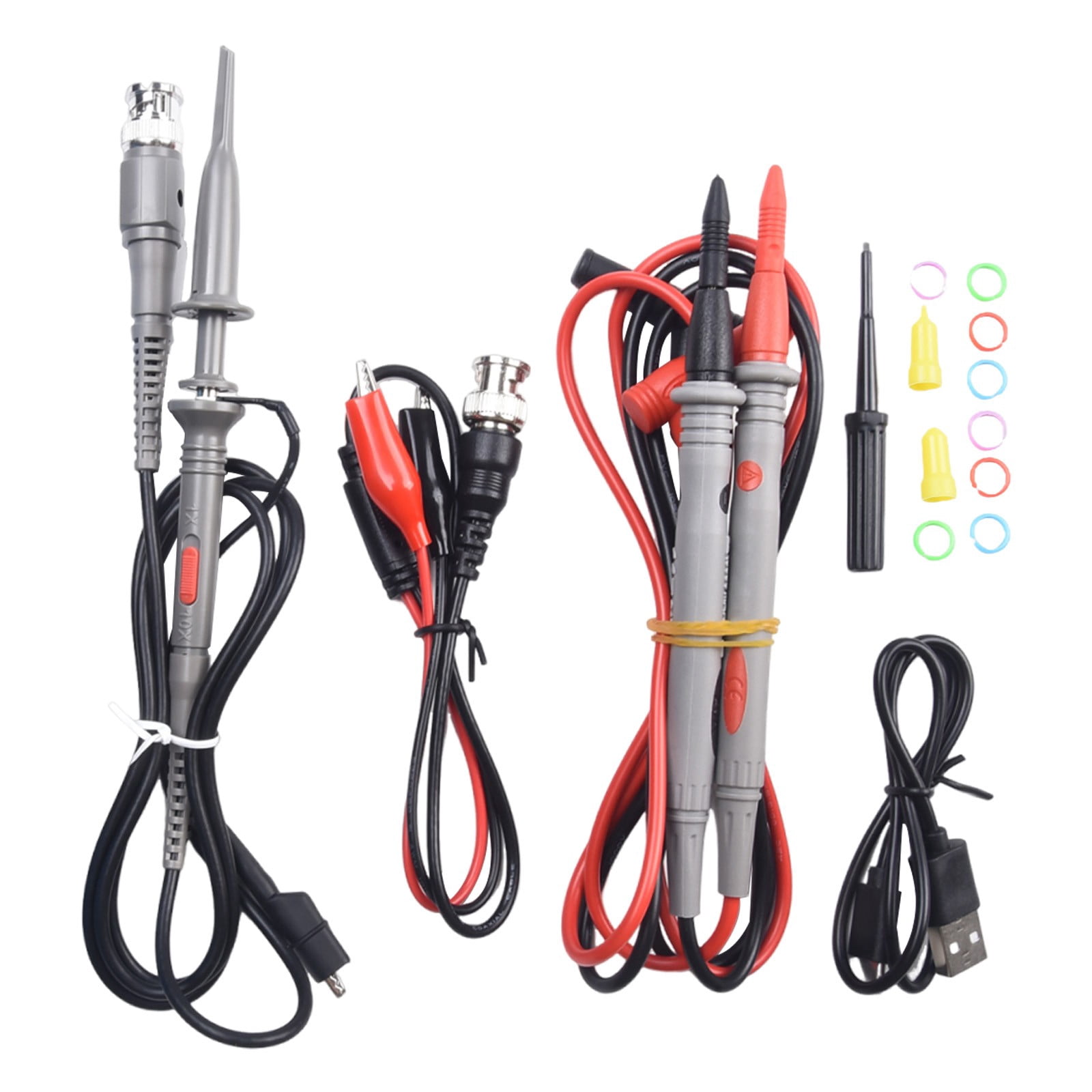

• 【PACKAGE CONTENTS & HIGHLIGHT FEATURES】 Package contents 2C23T handheld oscilloscope multimeter signal generator (3-in-1), probe, crocodile clip probe, multimeter probe, Type-C charging cable and user guide. Combines oscilloscope, multimeter and signal source in a pocketable tester for engineers and makers.
• 【SMART AUTO ADJUST & TRIGGERING】 Efficient button-driven auto adjustment and complete trigger modes (AUTO/NORMAL/SINGLE) let you capture and stabilize waveforms quickly; choose rising or falling edge triggers for targeted diagnostics and single-shot captures.
• 【DETAILED OSCILLOSCOPE SPECS】 Dual-channel 10 MHz analog bandwidth per channel, 50 MSa/s sample rate, 32 kB memory depth and display sensitivity down to 20 mV/div to reveal subtle signal details during repair, prototyping or education tasks.

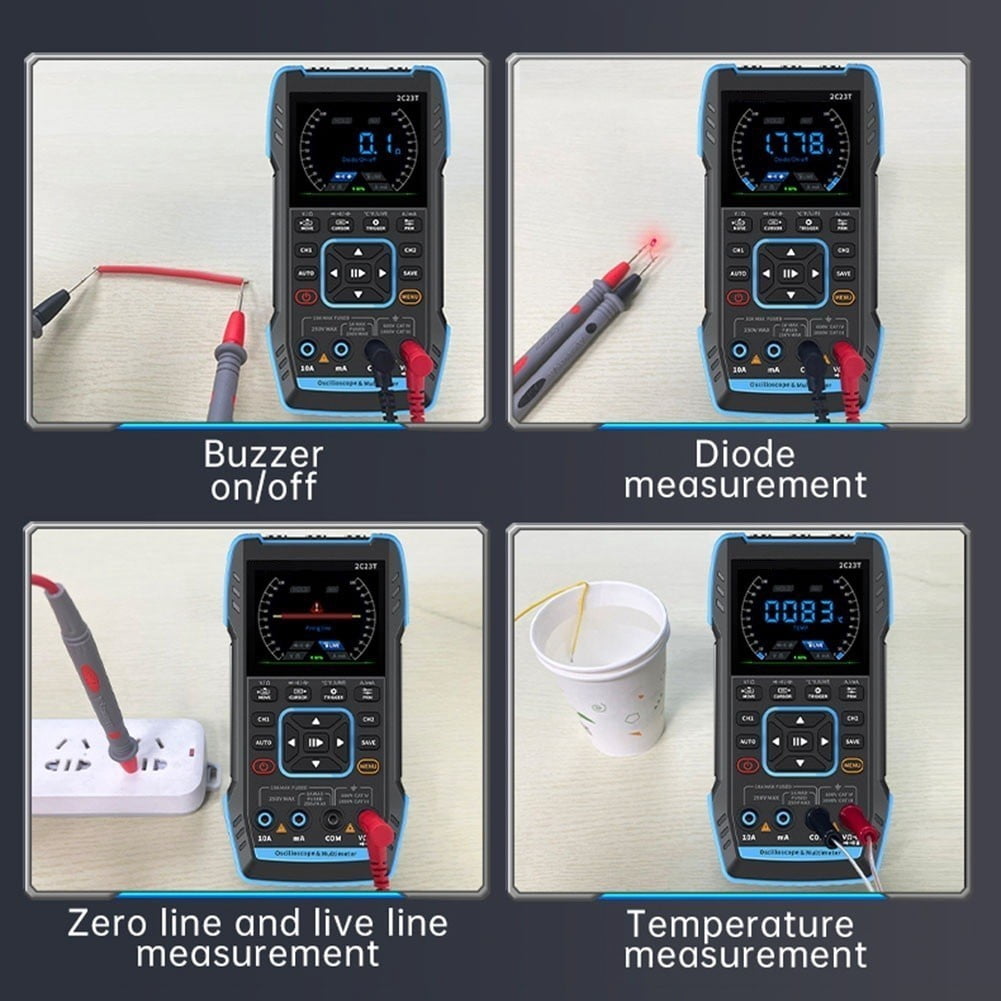

• 【ROBUST MEASUREMENT FUNCTIONS & PROTECTION】 Built-in multimeter covers DC/AC voltage, DC/AC current, resistance, capacitance, diode, continuity and temperature ranges; intelligent overload protection and dual ceramic fuses help protect the meter and novice users.

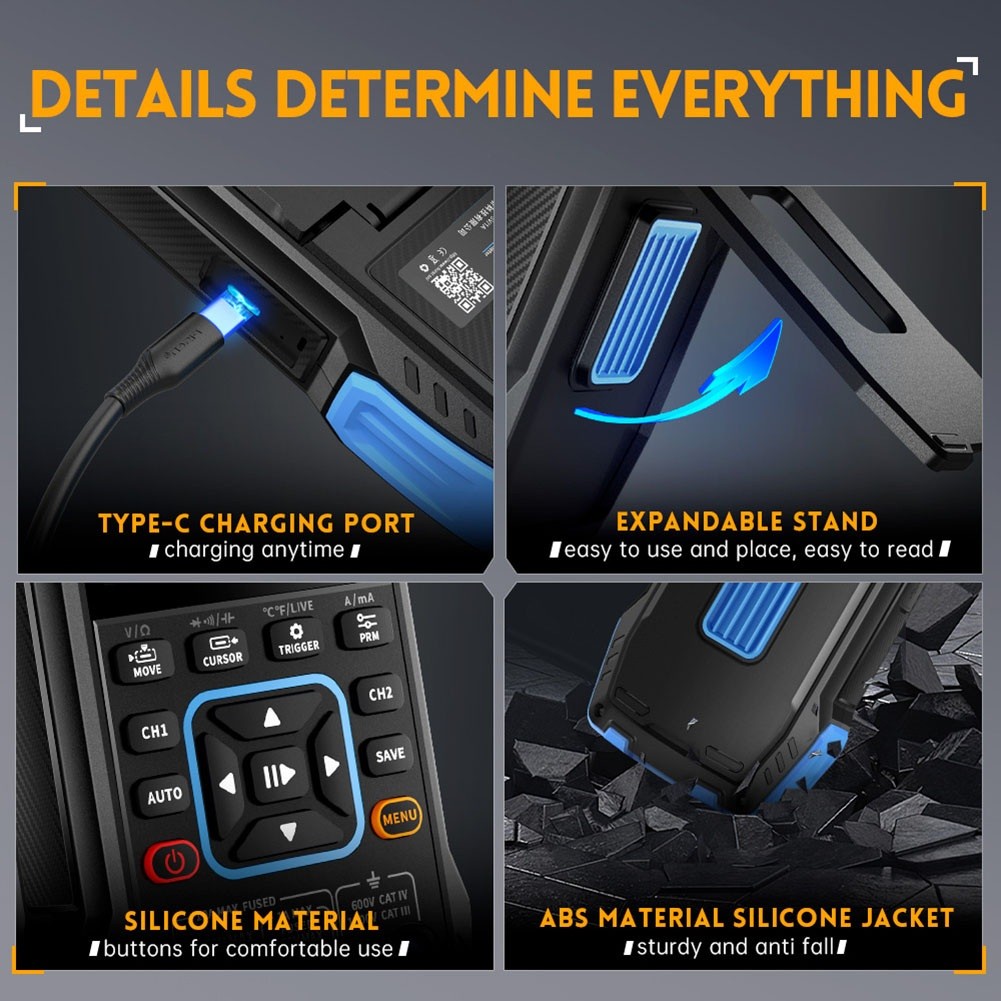

• 【CONVENIENT PORTABILITY & CONNECTIVITY】 True color 8-inch screen with 320x240 resolution, compact 167x89x35 mm size and 300 g weight; 3000 mAh battery for up to 8 hours, Type-C charging, save/preview screenshots and export to PC, with a 5-language menu for easy use.
