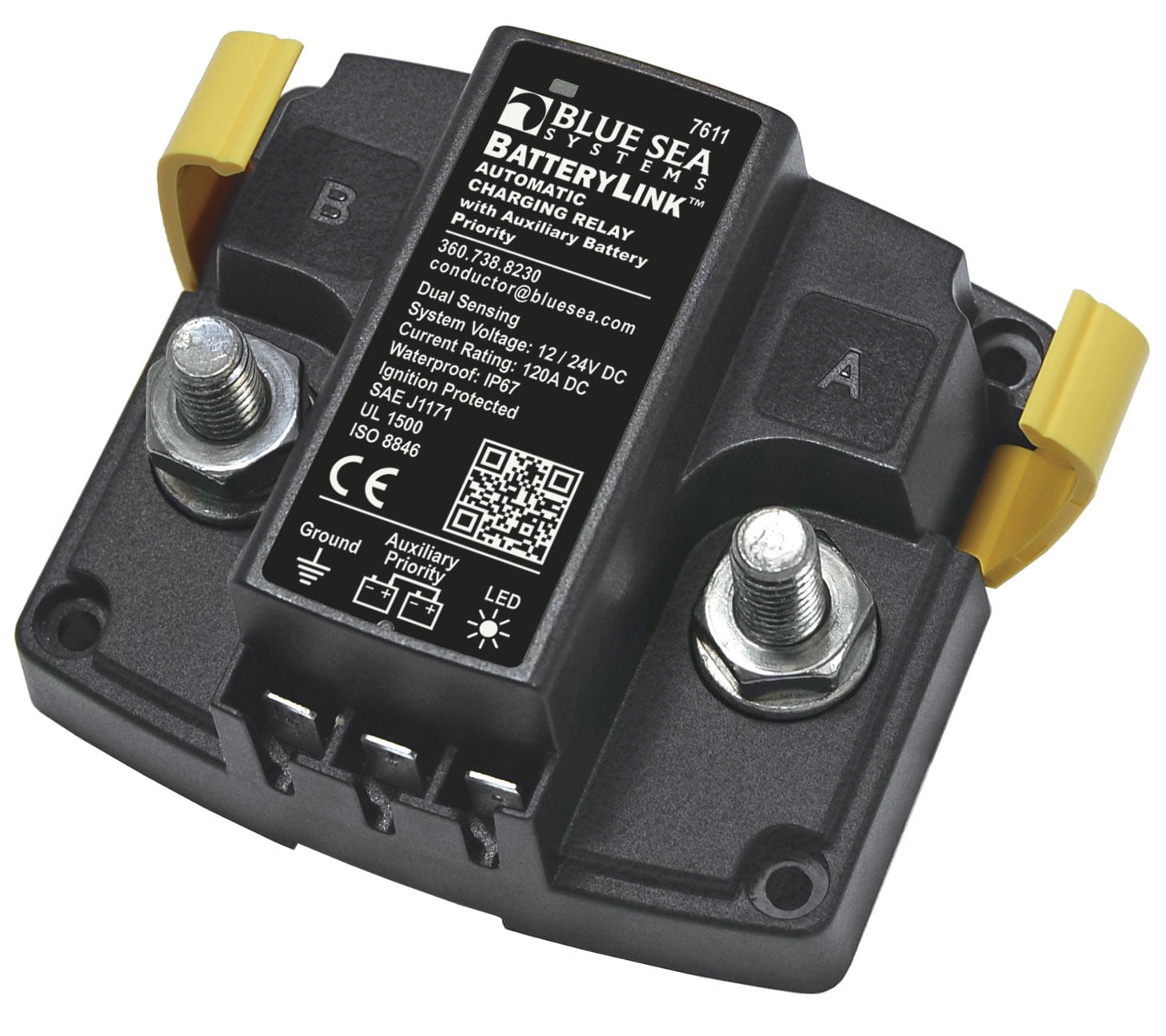

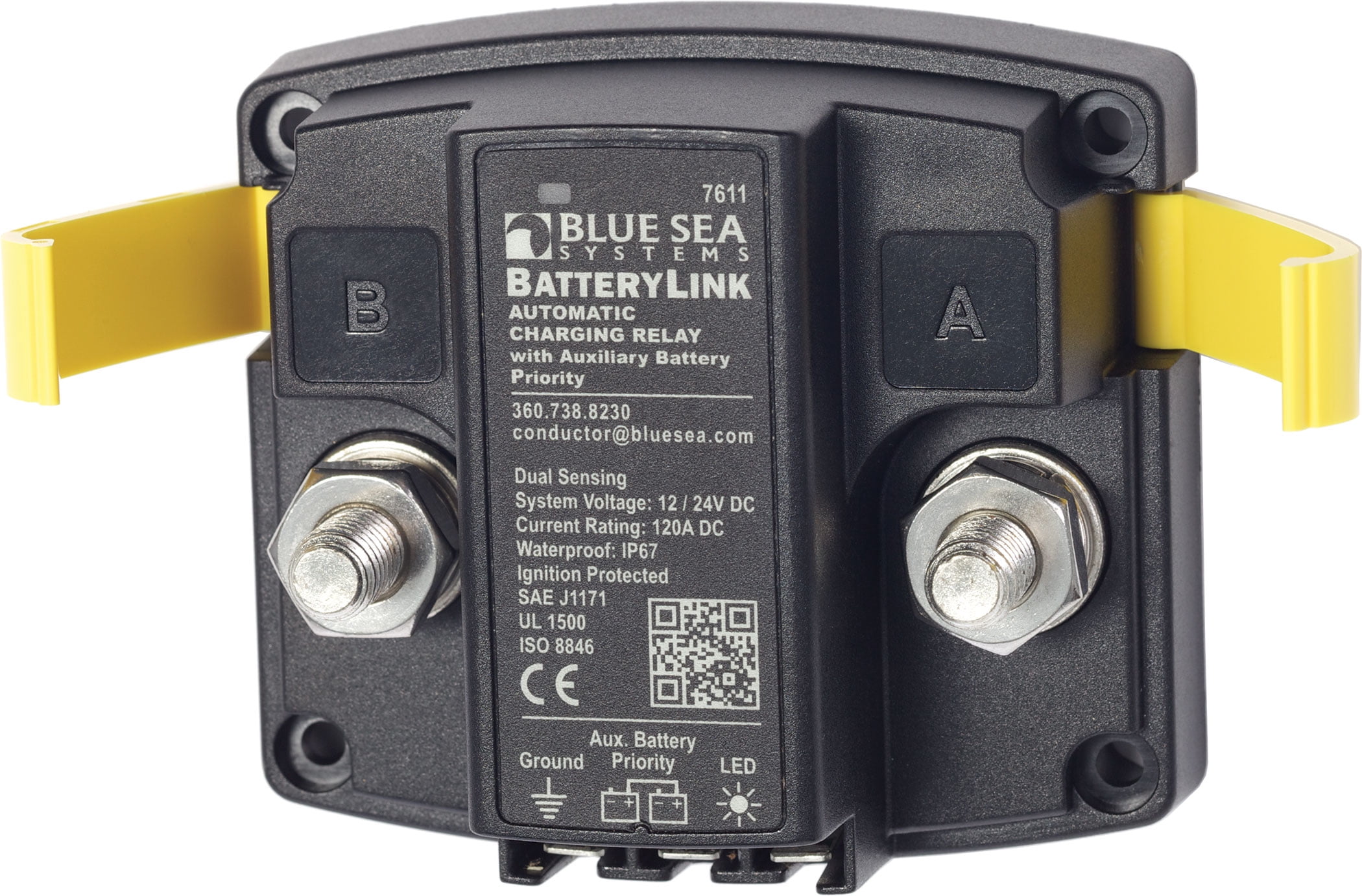

BLUE SEA 7611 DC BATTERYLINK AUTOMATIC CHARGING RELAY 120A
Product details
| Management number | 237848806 | Release Date | 2026/07/11 | List Price | US$36.25 | Model Number | 237848806 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BLUE SEA 7611 DC BATTERYLINK AUTOMATIC CHARGING RELAY 120A
7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery ChargingFeatures:
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections

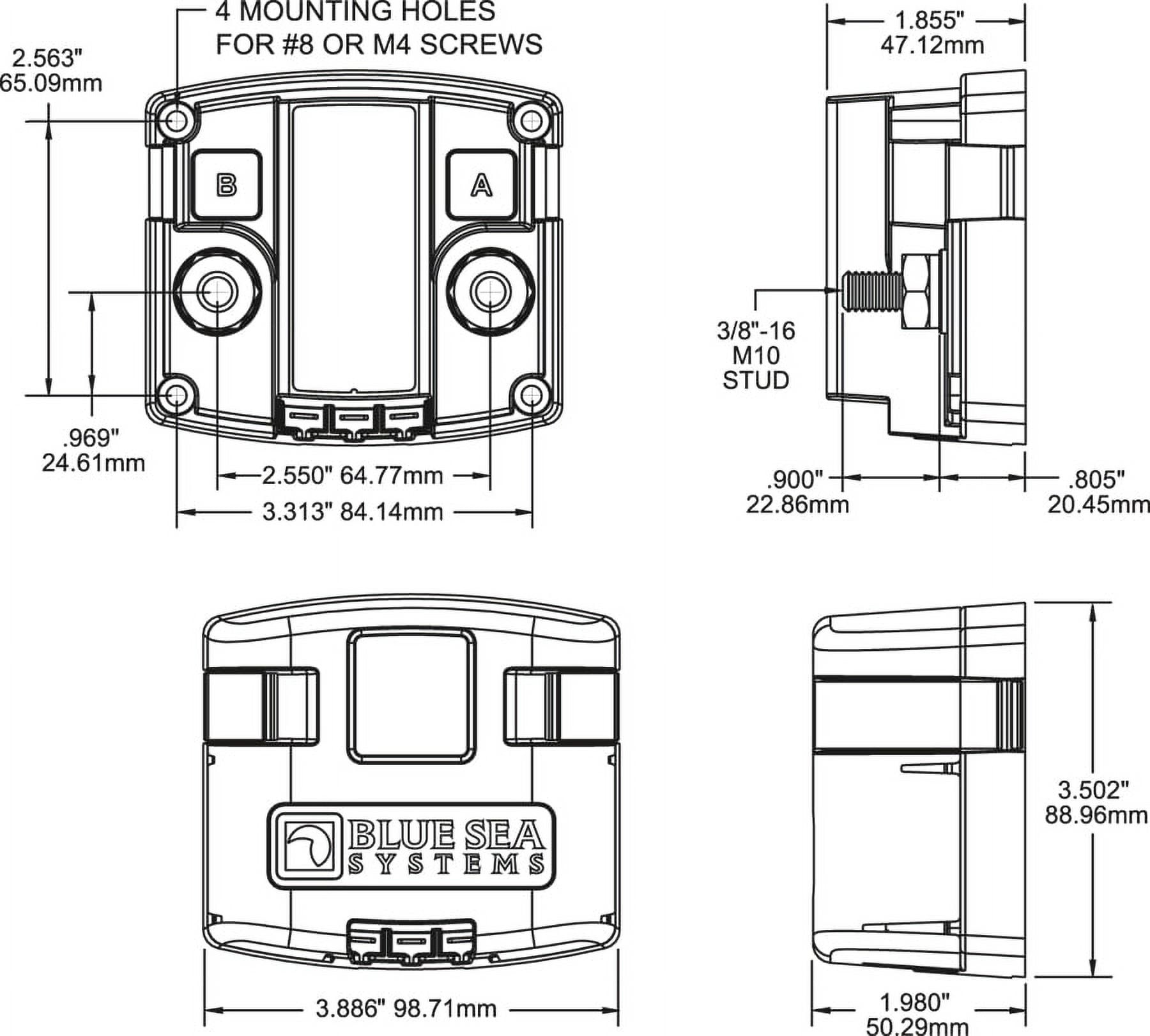

- 7/8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4" x .032" male quick connect terminals for ground and optional features
Specifications:
- Intermittent Rating: 5 min.: 210 Amps
- Continuous Rating: 120 Amps
- Nominal Voltage: 12/24 Volts DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Amps | 0 Amps |
|---|---|
| Input voltage | 24 V |
| Brand | Blue Sea Systems |
| Features | Automatic |
| Size | afd = none | amps - max = 120 amp | lockable = non |
| Assembled product weight | 1.23 lb |
| Has nrtl listing certification | N |
| Has written warranty | No |
| Model | 7611 |
| Multipack quantity | 1 |
