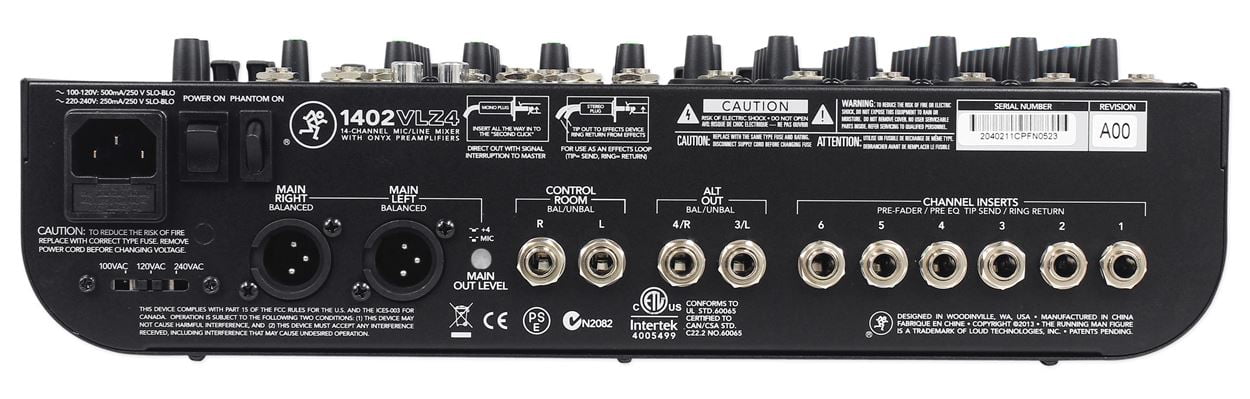

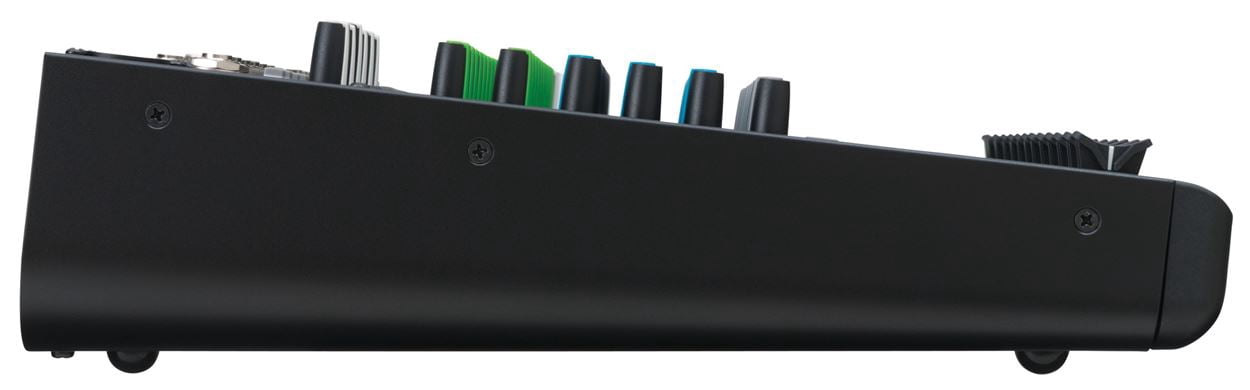

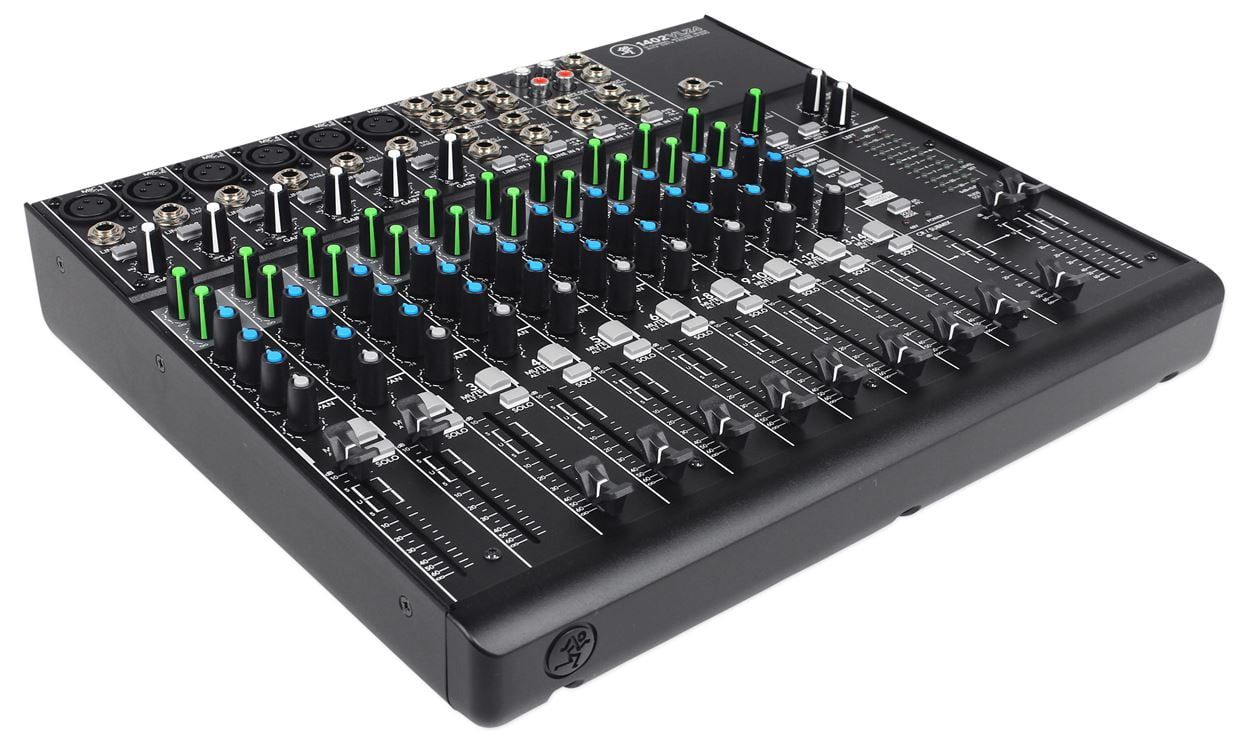

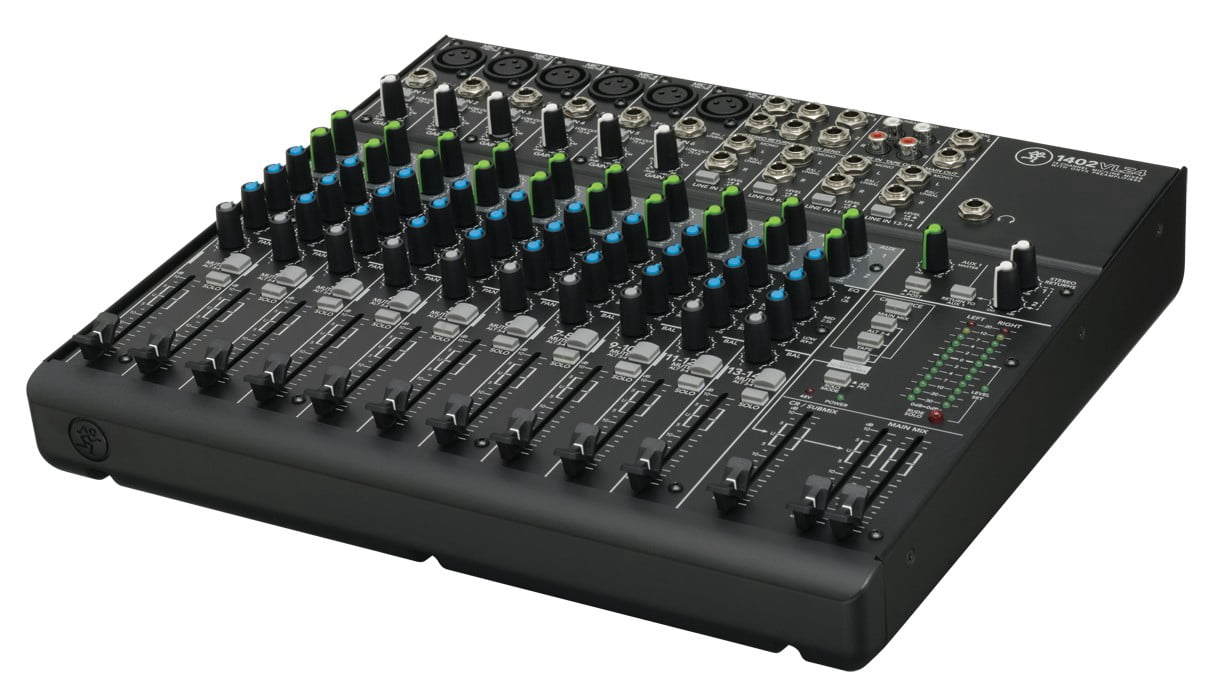

Mackie 1402VLZ4 14-ch. Analog Mixer w/ 6 ONYX Preamps+(2) 5.25" Studio Monitors

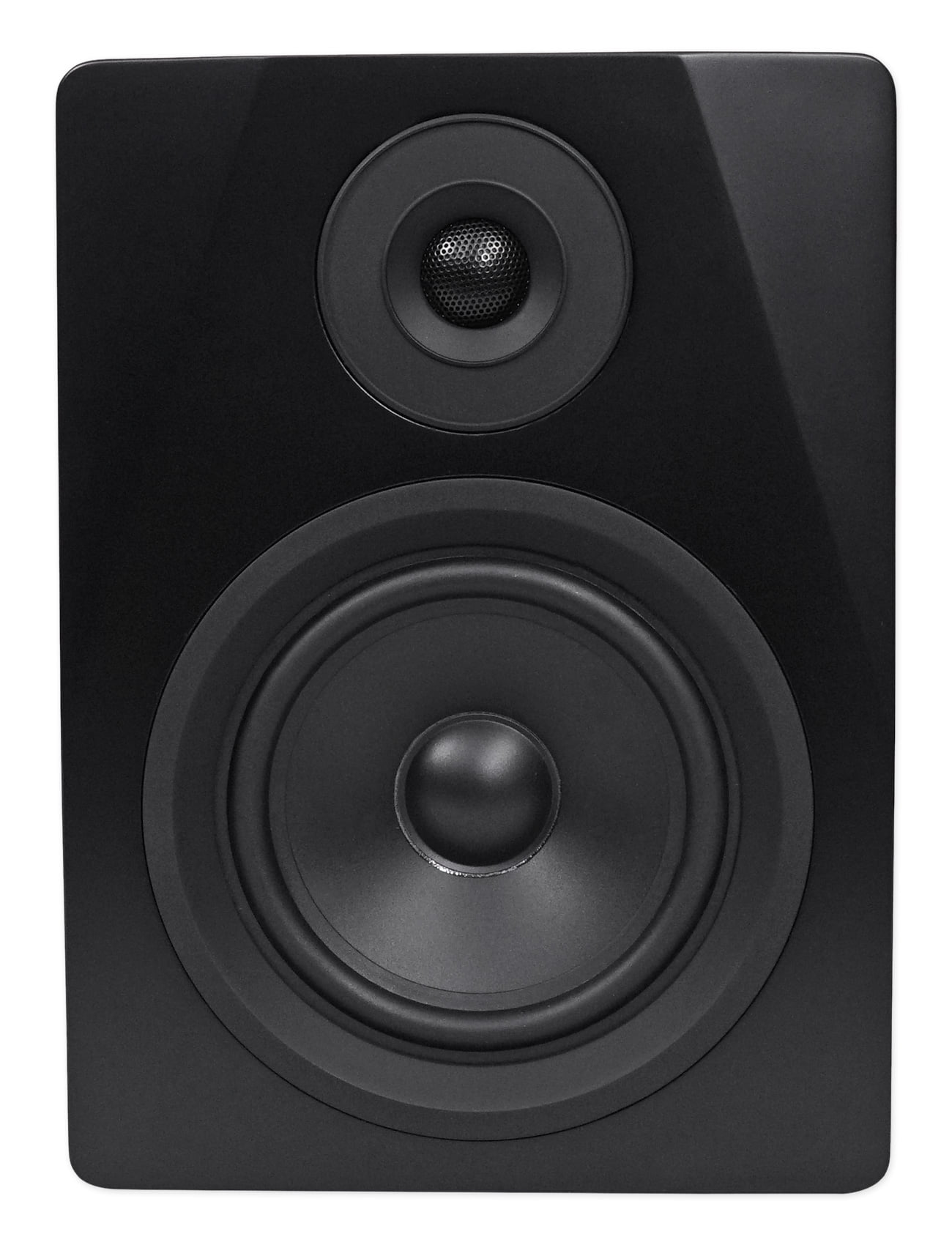

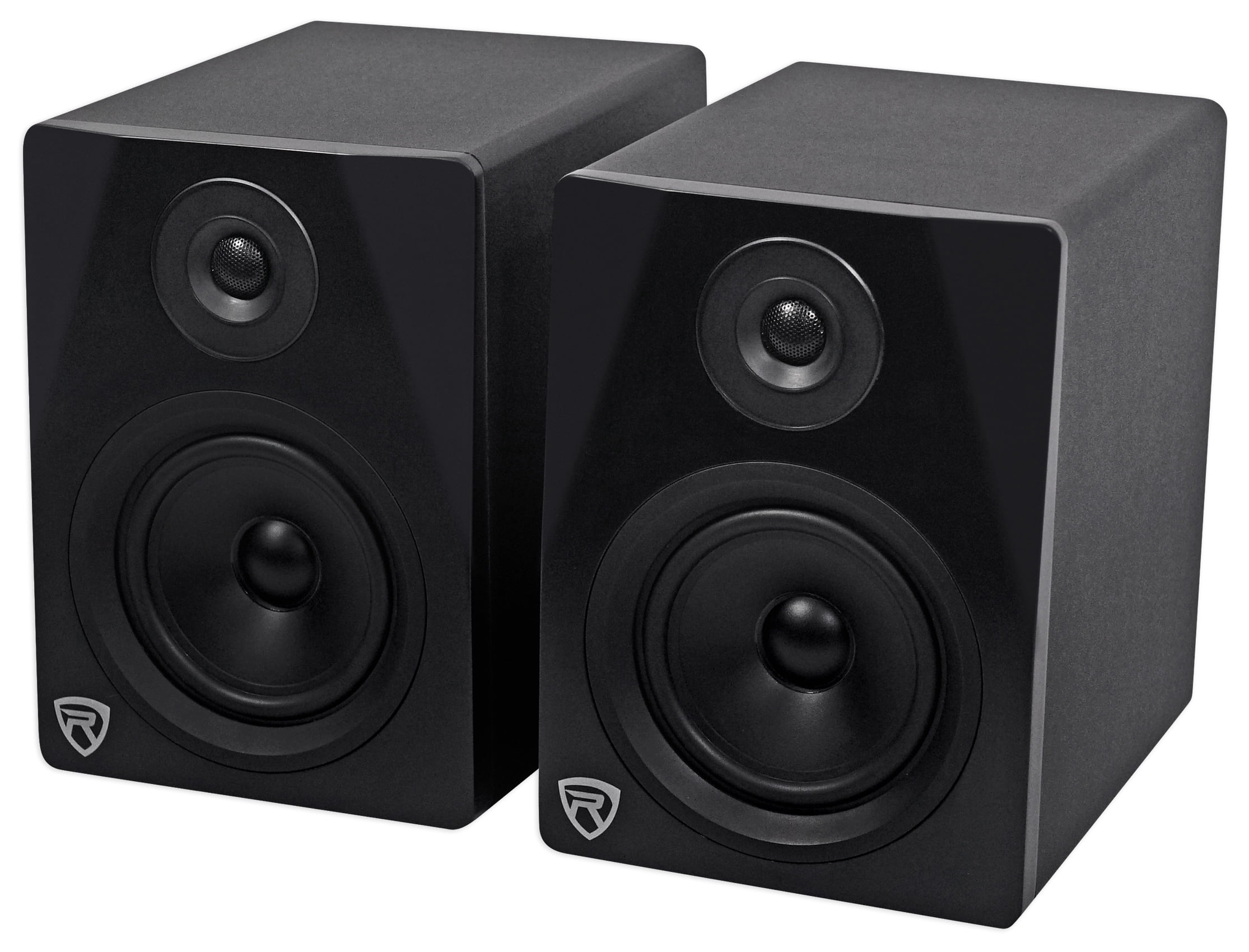

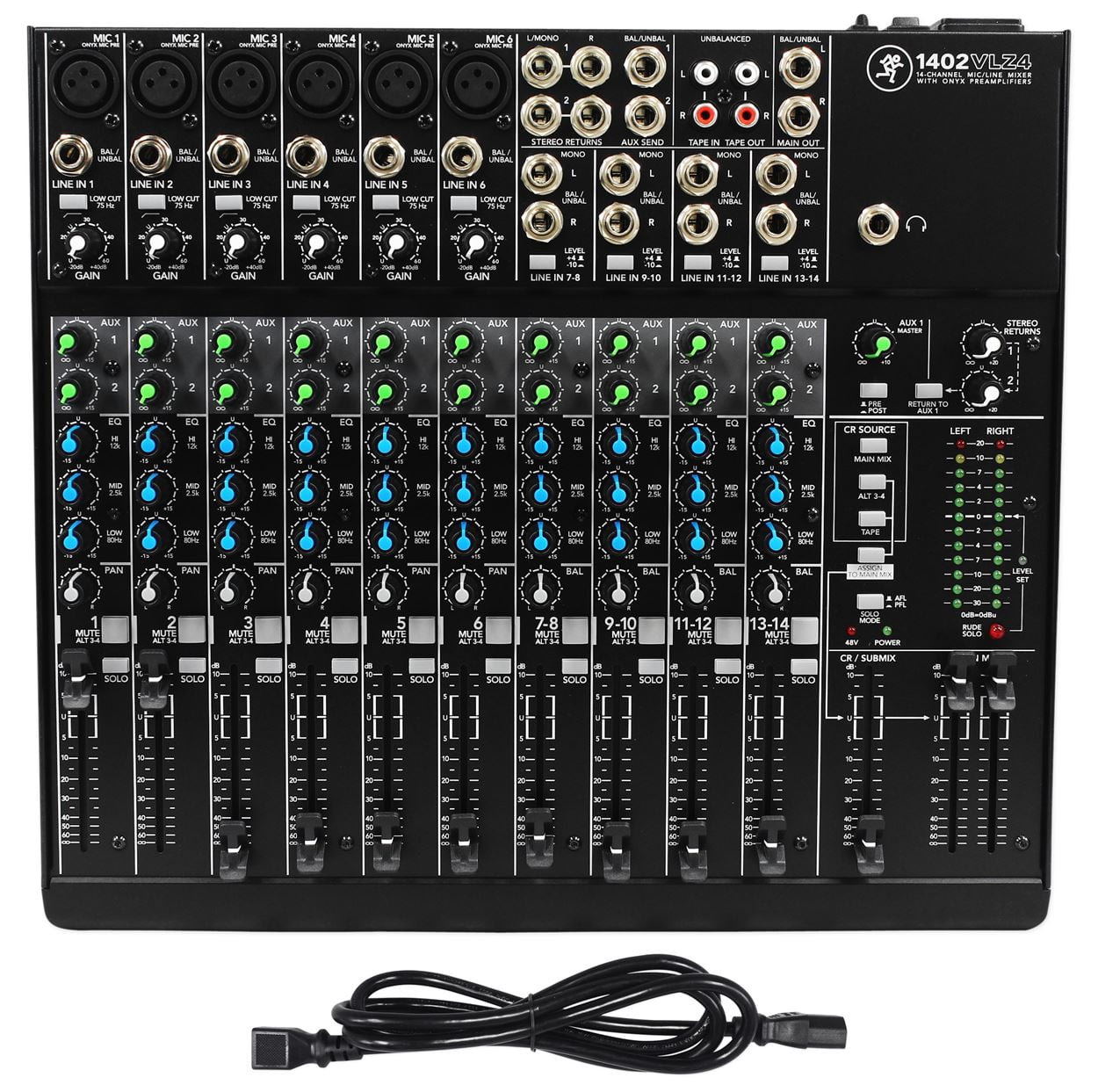

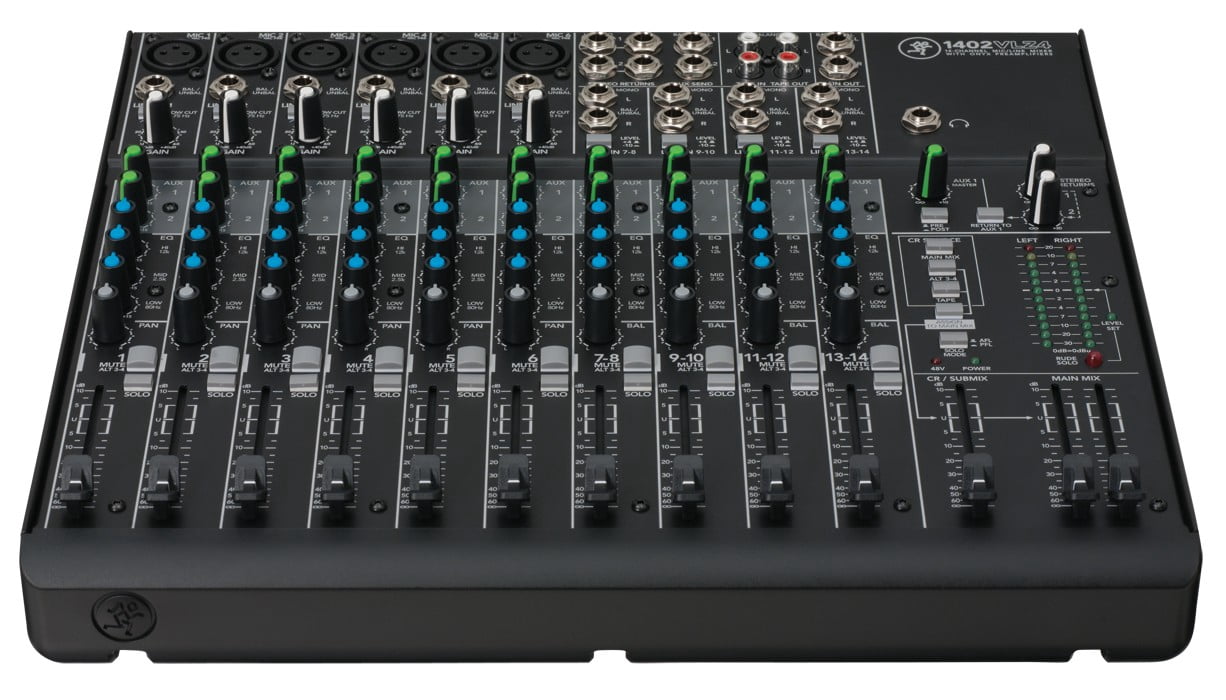

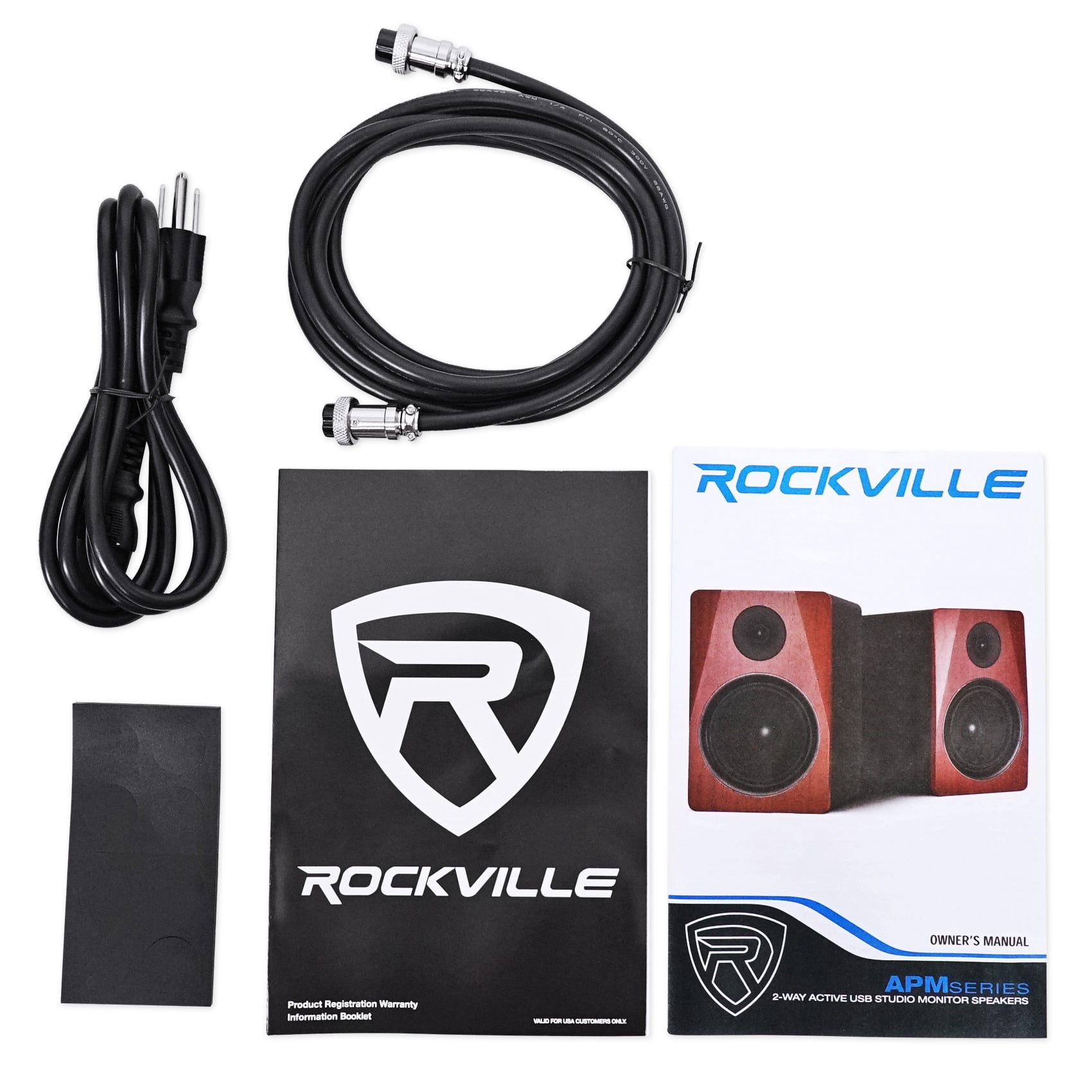

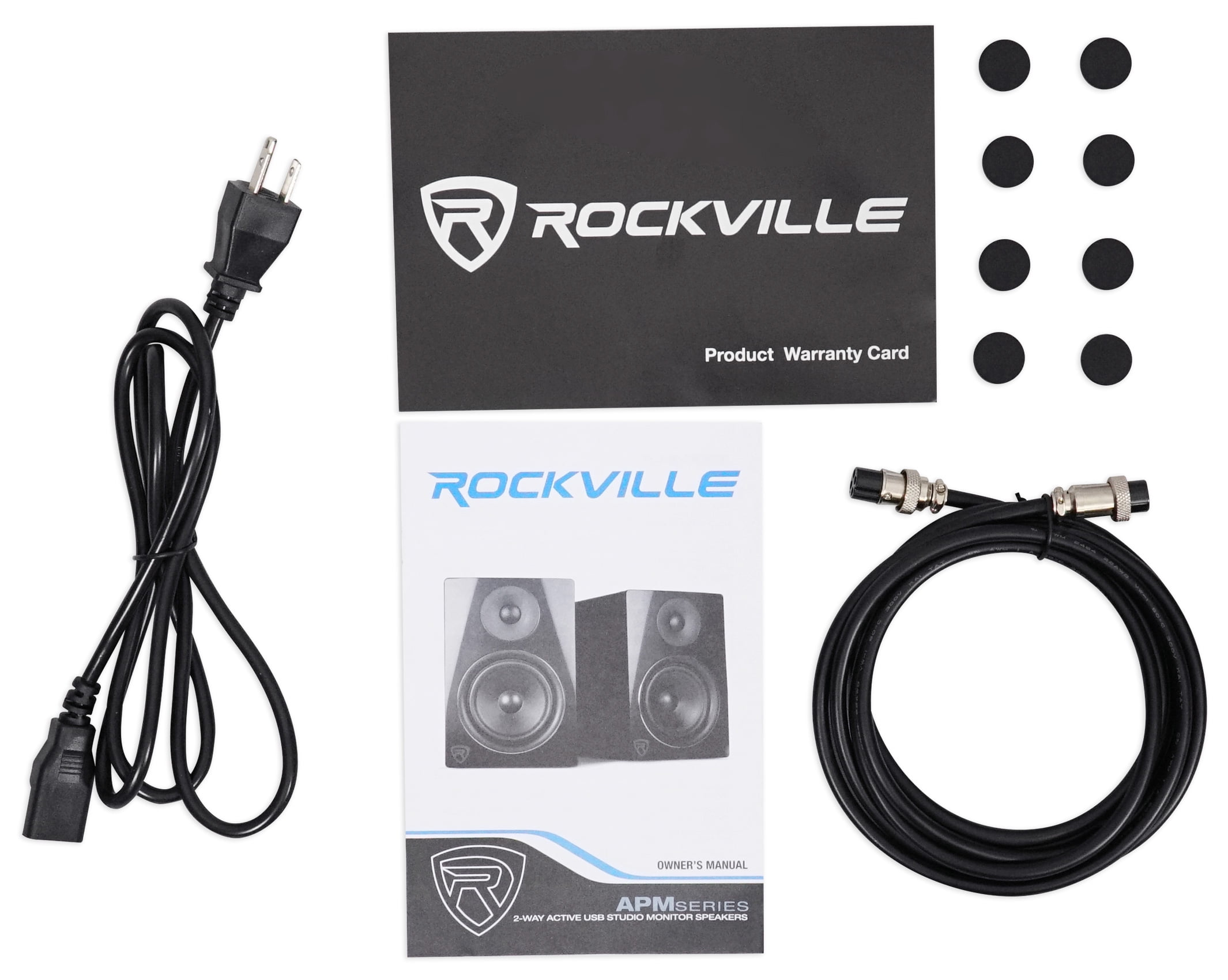

<p>Package Includes:<br> <br> (1) Mackie 1402VLZ4 14-channel Compact Analog Low-Noise Mixer<br> (1) Pair of Rockville APM5B 5.25" Active/Powered USB Studio Monitor Speakers Totaling 250W<br> <br> Video of 1402VLZ4:<br> <center> <div class="videoframe"> <video onclick="this.play();" poster="http://www.audiosavings.com/Assets/thumbnails/VLZ4.jpg" src="https://player.vimeo.com/external/216125744.hd.mp4?s=88c81c6e0d00186ad1a372a60d541f326629d8fd&profile_id=119" preload="none" controls="controls" width="640" height="360"></video> </div> </center> <br> Features:<br> <br> Mackie 1402VLZ4 14-channel Compact Mixer<br> 14-channel mixer featuring Mackie signature high-headroom/low-noise design<br> 6 boutique-quality Onyx mic preamps<br> Ultra-wide 60dB gain range<br> 128.5 dB dynamic range<br> +22 dBu line input handling<br> Distortion under 0.0007% (20Hz – 50kHz)<br> 14 high-headroom line inputs with +4/-10 operation control<br> 3-band EQ (80Hz, 2.5kHz, 12kHz)<br> 18 dB/oct 75Hz low-cut filter on mic input channels<br> 2 aux sends, level, pan and PFL solo on each channel<br> 60mm long-wearing log-taper faders<br> 2 stereo returns for connecting FX processor or other stereo source<br> ALT 3/4 stereo bus for added routing flexibility<br> <br> Details:<br> <br> Main Mix Noise<br> (20 Hz–20 kHz bandwidth, 1/4" main out, channels 1-6 gain At unity, channel EQs flat, all channels assigned to main mix, channels 1, 3 and 5 panned left, 2, 4 and 6 panned right.)<br> Main mix fader down, channel faders down: –101 dBu<br> Main mix At unity, channel faders down: –91 dBu<br> (95 dB Signal to Noise Ratio, ref +4 dBu)<br> Main mix fader At unity, channel faders At unity: –86 dBu<br> Total Harmonic Distortion (THD): (1 kHz At 35 dB gain, 20 Hz–20 kHz bandwidth) Mic pre At insert <0.0007%<br> Attenuation / Crosstalk<br> (1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth, line in, 1/4"main out, gain At unity)<br> Main mix fader down: –100 dBu<br> Channel Alt / Mute switch engaged: –90 dBu<br> Channel fader down: –90 dBu<br> Frequency Response (Mic input to main output (gain At unity)<br> +0, –1 dB, 20 Hz to 50 kHz<br> +0, –3 dB, <10 Hz to >100 kHz<br> Equivalent Input Noise (EIN)(Mic input to insert send out, max gain)<br> 150 ohm termination –128.5 dBu, 20 Hz–20 kHz<br> Common Mode Rejection Ratio (CMRR)<br> 1 kHz better than –70 dB<br> Maximum Levels<br> Mic in: +22 dBu<br> Tape in: +16 dBu<br> All other inputs: +22 dBu<br> Main mix XLR out: +28 dBu<br> All other outputs: +22 dBu<br> Impedances<br> Mic in: 2.5 k ohm<br> Channel insert return: 2.5 k ohm<br> All other inputs: 10 k ohm or greater<br> Tape out: 1.1 k ohm<br> All other outputs: 120 ohm<br> EQ<br> High Shelving: ±15 dB At 12 kHz<br> Mid Peaking: ±15 dB At 2.5 kHz<br> Low Shelving: ±15 dB At 80 Hz<br> AC Power Requirements<br> Power Consumption: 25 watts<br> US, JP: 100 – 120 VAC, 50 – 60 Hz<br> EU, UK, AU, CN: 200 – 240 VAC, 50 – 60 Hz<br> Operating Temperature: 0° – 40°C, 32° – 104°F<br> Fuse Rating<br> 100-120V 500 mA slo blo, 5 x 20 mm<br> 220-240V 250 mA slo blo, 5 x 20 mm<br> Physical Properties (product): 12.5" x 3.2" x 14"<br> Weight 9.5 lb / 4.5 kg<br> Physical Properties (packaged product): 6.9" x 16.1" 15.2"<br>

• Package Includes: (1) Mackie 1402VLZ4 14-channel Compact Analog Low-Noise Mixer. (1) Pair of Rockville APM5B 5.25" Active/Powered USB Studio Monitor Speakers Totaling 250W. Features: Mackie 1402VLZ4 14-channel Compact Mixer. 14-channel mixer featuring Mackie signature high-headroom/low-noise design. 6 boutique-quality Onyx mic preamps Ultra-wide 60dB gain range 128.5 dB dynamic range +22 dBu line input handling Extended frequency response Distortion under 0.0007% (20Hz 50kHz)
• Ultra-wide 60dB gain range. 128.5 dB dynamic range. +22 dBu line input handling. Extended frequency response. Distortion under 0.0007% (20Hz 50kHz). Improved RF rejection perfect for broadcast applications. Phantom power for condenser mics. 14 high-headroom line inputs with +4/-10 operation control. 3-band EQ (80Hz, 2.5kHz, 12kHz). 18 dB/oct 75Hz low-cut filter on mic input channels. 2 aux sends, level, pan and PFL solo on each channel. 60mm long-wearing log-taper faders
• 2 stereo returns for connecting FX processor or other stereo source. ALT 3/4 stereo bus for added routing flexibility. Control room / phones source matrix. High-resolution 12-segment stereo meters. Sealed rotary control resist dust and grime. Built-Like-A-Tank rugged steel chassis with powder-coat finish. High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback. Rack-mountable design using optional rack ear kit. Multi-voltage power supply for worldwide use
• 6 boutique-quality Onyx mic preamps. Ultra-wide 60dB gain range. 128.5 dB dynamic range. +22 dBu line input handling. Extended frequency response. Distortion under 0.0007% (20Hz 50kHz). Details: Main Mix Noise. (20 Hz20 kHz bandwidth, 1/4" main out, channels 1-6 gain At unity, channel EQs flat, all channels assigned to main mix,channels 1, 3 and 5 panned left, 2, 4 and 6 panned right.). Main mix fader down, channel faders down: 101 dBu. Main mix At unity, channel faders down: 91 dBu
• (95 dB Signal to Noise Ratio, ref +4 dBu). Main mix fader At unity, channel faders At unity: 86 dBu. Total Harmonic Distortion (THD): (1 kHz At 35 dB gain, 20 Hz20 kHz bandwidth) Mic pre At insert <0.0007%. Attenuation / Crosstalk. (1 kHz relative to 0 dBu, 20 Hz20 kHz bandwidth, line in, 1/4"main out, gain At unity). Main mix fader down: 100 dBu. Channel Alt / Mute switch engaged: 90 dBu. Channel fader down: 90 dBu. Frequency Response (Mic input to main output (gain At unity)
