YUCHENGTECH 500ml Hydrothermal Synthesis stirring reactor Lining PTFE High Pressure Autoclave Reactor High-Pressure Reactor Autoclave with Temperature Control Probe 100-2000 rpm/min (500ml, 110V)

Precautions: 1. Prevent scalding: the temperature of the heating part is high, you need to be careful when operating to avoid scalding. 2. Turn off sequence: After the high temperature heating is finished, please turn off the heating first and wait for a few minutes for the residual temperature to dissipate before turning off the stirring. 3. Liquid overflow: If liquid overflows into the set, you should quickly turn off the power, put the electric heating set in a ventilated place and wait for it to dry before using it, so as to avoid the danger of electric leakage or electrical short circuit. 4. Avoid heating with empty set: Please don't heating with empty set or dry burning. 5. Grounding protection: In order to ensure safe use, please be sure to connect the grounding wire.Product Introduction Hydrothermal synthesis reactor is a kind of high purity reaction vessel with high temperature resistance, high pressure resistance and anticorrosion. It is mostly used in organic synthesis, hydrothermal synthesis, crystal growth or sample digestion and extraction. Digestion of heavy metals, agricultural residues, food, sludge, rare earth, aquatic products, organic matter and so on before sample treatment. Therefore, it is widely used in the research and production of petrochemical, biomedical, material science, geochemistry, environmental science, food science, commodity inspection and other departments. Parameters: Power supply: 110V, 50Hz/60Hz Speed range: 100-2000 rpm, digital display speed Motor power: 40W, DC14-24V Mixing capacity: 500ml Heating power: 180-2200W Temperature Control Accuracy: ±1℃ Temperature control mode: intelligent digital display, thyristor control, built-in sensor temperature measurement Furnace wire: Cr20Ni80 Insulation Layer: Alkali-free Glass Fiber, 450 Degree Temperature Resistance Insulation coefficient: when relative humidity is less than 35%, it is more than 500 Mb Insulation Layer: Using Aluminum Silicate Cotton Vacuum Forming Environmental Protection Insulation Body Working hours: continuous Safety Pipe: ø5×20 15A

• 1.【Rapid and uniform heating】: Adopting hemispherical endothermic heater design, providing large contact area and high thermal efficiency, it can provide uniform heating effect to ensure that the substances in the container are heated uniformly and ensure the stability of the experimental temperature. Due to the large contact area and high thermal efficiency between the heater and the container, it can realize rapid warming, shorten the heating time, high heating efficiency and reduce energy waste.

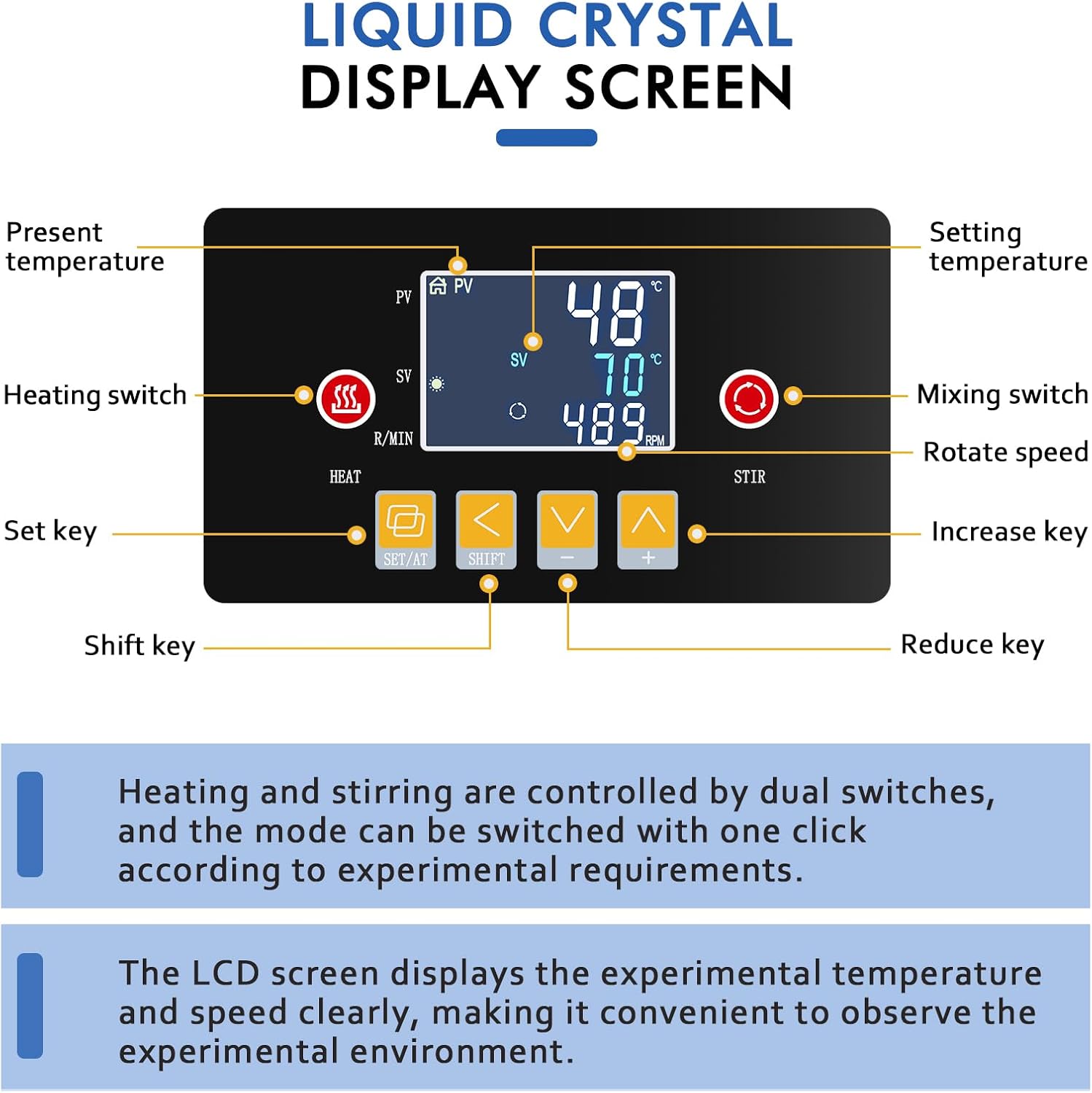

• 2.【Precise temperature control】: The temperature control system adopts fuzzy PID control algorithm, which can automatically adjust the heating power according to the difference between the real-time temperature and the set temperature. Self-tuning function, high measurement accuracy and small flushing temperature, with internal and external thermocouple temperature measurement, SCR control output, with broken couple protection function. Double screen digital display, real-time monitoring of the temperature inside the heating jacket.
• 3.【Safety performance】: With overheating protection function, when the temperature exceeds the preset safety value automatically cut off the power, to prevent equipment damage or cause fire, the heating material selection of high-quality insulation alkali-free glass fiber, can effectively ensure that the heating process will not be conductive, to protect the experimental safety.

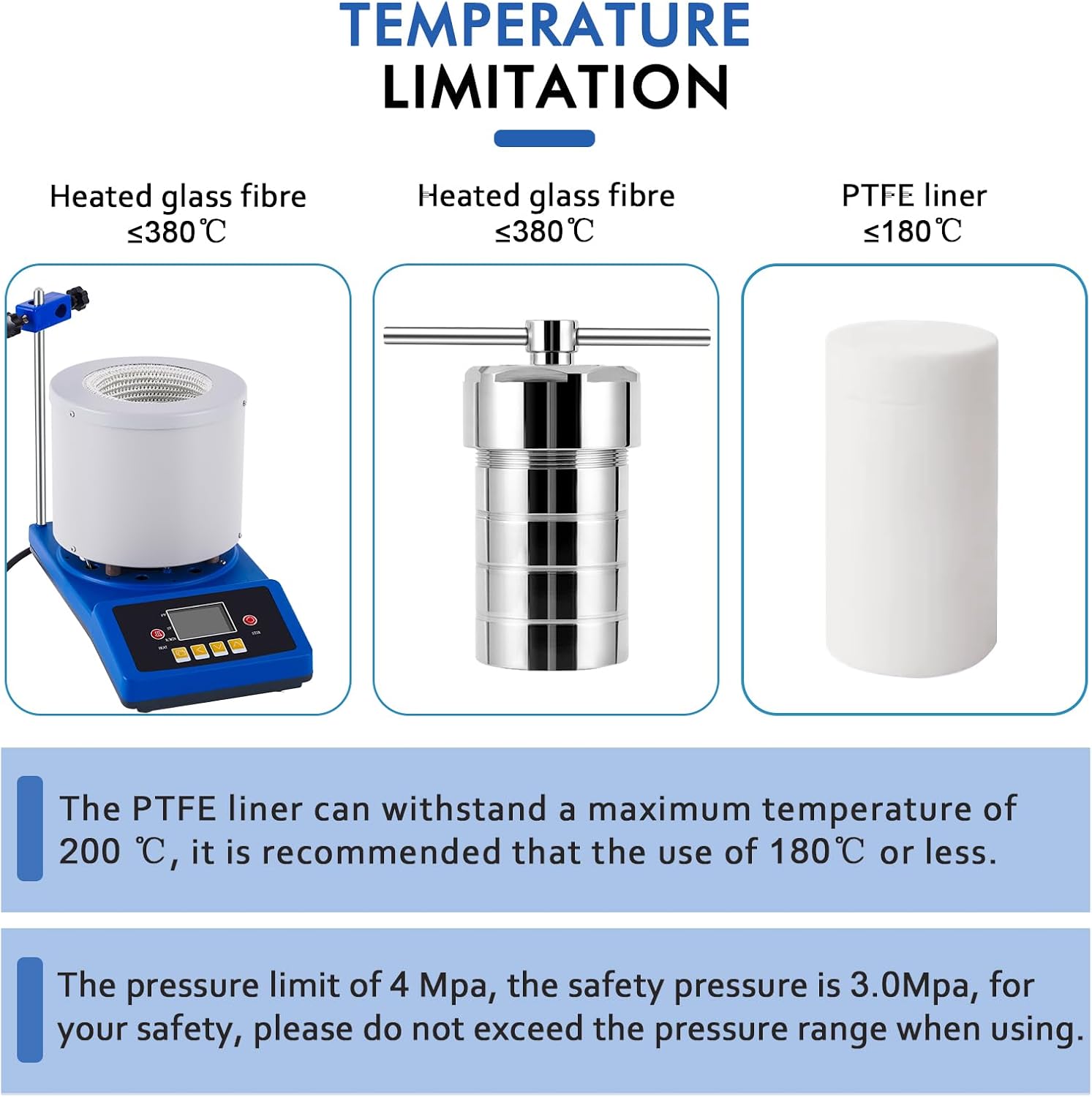

• 4.【Note】: The PTFE liner can withstand a maximum temperature of 200 ℃, it is recommended that the use of 180 ℃ or less, the pressure limit of 4 MPA. the first time you use, the heating set of white smoke and odor, and the color of white to brown and then become white is a normal phenomenon, because the glass fiber in the production process contains oil and other compounds. You can put the machine in a ventilated place, and it can be used normally after a few minutes.
• 5.【Application】: The product is widely used in scientific research, education, industry and other fields of laboratory heating, as well as the need for precise temperature control and heating of the experimental process. It can fulfill the needs of biological sample processing, hydrothermal chemical synthesis, sample dissolution, constant temperature heating, viscosity measurement, distillation and thermal extraction. It provides great convenience and efficiency in the above applications due to its easy operation, precise temperature control and uniform heating.
